Adaptive Exponential IF neuron

#!pip install ANNarchy

This notebook explores how the AdEx neuron model can reproduce various spiking patterns observed in vivo.

Code based on:

Naud, R., Marcille, N., Clopath, C., and Gerstner, W. (2008). Firing patterns in the adaptive exponential integrate-and-fire model. Biol Cybern 99, 335. doi:10.1007/s00422-008-0264-7.

import ANNarchy as ann

ANNarchy 5.0 (5.0.0) on darwin (posix).

The AdEx neuron is defined by the following equations:

C \, \frac{dv}{dt} = -g_L \ (v - E_L) + g_L \, \Delta_T \, \exp(\frac{v - v_T}{\Delta_T}) + I - w

\tau_w \, \frac{dw}{dt} = a \, (v - E_L) - w

if v > v_\text{spike}:

• v = v_R
• w = w + b

AdEx = ann.Neuron(
    parameters=dict(
        C = ann.Parameter(200.),
        gL = ann.Parameter(10.), # not g_L! g_ is reserved for spike transmission
        E_L = ann.Parameter(-70.),
        v_T = ann.Parameter(-50.),
        delta_T = ann.Parameter(2.0),
        a = ann.Parameter(2.0),
        tau_w = ann.Parameter(30.),
        b = ann.Parameter(0.),
        v_r = ann.Parameter(-58.),
        I = ann.Parameter(500.),
        v_spike = ann.Parameter(0.0),
    ),
    equations= [
        ann.Variable('C * dv/dt = - gL * (v - E_L) +  gL * delta_T * exp((v-v_T)/delta_T) + I - w', init=-70.0),
        ann.Variable('tau_w * dw/dt = a * (v - E_L) - w'),
    ],
    spike = "v >= v_spike",
    reset = """
        v = v_r
        w += b
    """,
    refractory = 2.0
)

We create a population of 8 AdEx neurons which will get different parameter values.

net = ann.Network(dt=0.1)
pop = net.create(8, AdEx)
net.compile()

Compiling network 1...  OK

We add a monitor to track the membrane potential and the spike timings during the simulation.

m = net.monitor(pop, ['v', 'spike'])

As in the paper, we provide different parameters to each neuron and simulate the network for 500 ms with a fixed input current, and remove that current for an additional 50 ms.

# a) tonic spiking b) adaptation, c) initial burst, d) regular bursting, e) delayed accelerating, f) delayed regular bursting, g) transcient spiking, h) irregular spiking
pop.C =       [200, 200, 130, 200, 200, 200, 100, 100]
pop.gL =      [ 10,  12,  18,  10,  12,  12,  10,  12]
pop.E_L =     [-70, -70, -58, -58, -70, -70, -65, -60]
pop.v_T =     [-50, -50, -50, -50, -50, -50, -50, -50]
pop.delta_T = [  2,   2,   2,   2,   2,   2,   2,   2]
pop.a =       [  2,   2,   4,   2,-10., -6.,-10.,-11.]
pop.tau_w =   [ 30, 300, 150, 120, 300, 300,  90, 130]
pop.b =       [  0,  60, 120, 100,   0,   0,  30,  30]
pop.v_r =     [-58, -58, -50, -46, -58, -58, -47, -48]
pop.I =       [500, 500, 400, 210, 300, 110, 350, 160]

# Reset neuron
pop.v = pop.E_L
pop.w = 0.0

# Simulate
net.simulate(500.)
pop.I = 0.0
net.simulate(50.)

# Recordings
data = m.get('v')
spikes = m.get('spike')
for n, t in spikes.items(): # Normalize the spikes
    data[[x - m.times()['v']['start'][0] for x in t], n] = 0.0

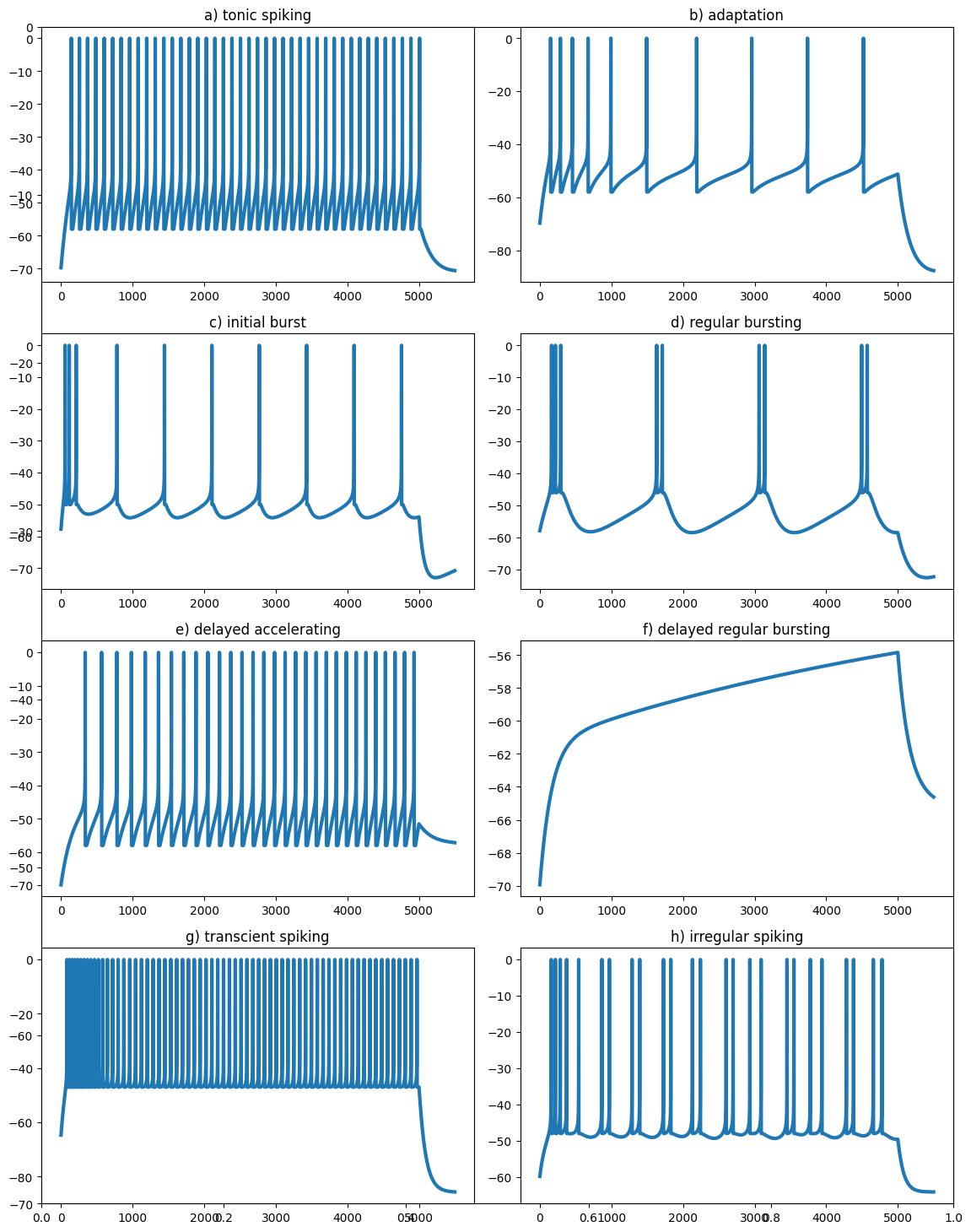

We can now visualize the simulations:

import matplotlib.pyplot as plt

titles = [
    "a) tonic spiking",
    "b) adaptation",
    "c) initial burst",
    "d) regular bursting",
    "e) delayed accelerating",
    "f) delayed regular bursting",
    "g) transcient spiking",
    "h) irregular spiking"
]

plt.figure(figsize=(12, 15))
plt.ylim((-70., 0.))
for i in range(8):
    plt.subplot(4, 2, i+1)
    plt.title(titles[i])
    plt.plot(data[:, i], lw=3)


plt.tight_layout()
plt.show()
