Homeostatic STDP: SORF model

Download JupyterNotebook Download JupyterNotebook

#!pip install ANNarchy

Reimplementation of the SORF model published in:

Carlson, K.D.; Richert, M.; Dutt, N.; Krichmar, J.L., “Biologically plausible models of homeostasis and STDP: Stability and learning in spiking neural networks,” in Neural Networks (IJCNN), The 2013 International Joint Conference on , vol., no., pp.1-8, 4-9 Aug. 2013. doi: 10.1109/IJCNN.2013.6706961

import numpy as np
import ANNarchy as ann
nb_neuron = 4 # Number of exc and inh neurons
size = (32, 32) # input size
freq = 1.2 # nb_cycles/half-image
nb_stim = 40 # Number of grating per epoch
nb_epochs = 20 # Number of epochs
max_freq = 28. # Max frequency of the poisson neurons
T = 10000. # Period for averaging the firing rate
# Izhikevich Coba neuron with AMPA, NMDA and GABA receptors
RSNeuron = ann.Neuron(
    parameters = """
        a = 0.02 : population
        b = 0.2 : population
        c = -65. : population
        d = 8. : population
        tau_ampa = 5. : population
        tau_nmda = 150. : population
        tau_gabaa = 6. : population
        tau_gabab = 150. : population
        vrev_ampa = 0.0 : population
        vrev_nmda = 0.0 : population
        vrev_gabaa = -70.0 : population
        vrev_gabab = -90.0 : population
    """ ,
    equations="""
        # Inputs
        I = g_ampa * (vrev_ampa - v) + g_nmda * nmda(v, -80.0, 60.0) * (vrev_nmda -v) + g_gabaa * (vrev_gabaa - v) + g_gabab * (vrev_gabab -v)
        # Midpoint scheme
        dv/dt = (0.04 * v + 5.0) * v + 140.0 - u + I : init=-65., min=-90., midpoint
        du/dt = a * (b*v - u) : init=-13., midpoint
        # Conductances
        tau_ampa * dg_ampa/dt = -g_ampa : exponential
        tau_nmda * dg_nmda/dt = -g_nmda : exponential
        tau_gabaa * dg_gabaa/dt = -g_gabaa : exponential
        tau_gabab * dg_gabab/dt = -g_gabab : exponential
    """ ,
    spike = """
        v >= 30.
    """,
    reset = """
        v = c
        u += d
        g_ampa = 0.0
        g_nmda = 0.0
        g_gabaa = 0.0
        g_gabab = 0.0
    """,
    functions = """
        nmda(v, t, s) = ((v-t)/(s))^2 / (1.0 + ((v-t)/(s))^2)
    """,
    refractory=1.0
)
# STDP with homeostatic regulation
homeo_stdp = ann.Synapse(
    parameters="""
        # STDP
        tau_plus  = 60. : projection
        tau_minus = 90. : projection
        A_plus  = 0.000045 : projection
        A_minus = 0.00003 : projection

        # Homeostatic regulation
        alpha = 0.1 : projection
        beta = 50.0 : projection # <- Difference with the original implementation
        gamma = 50.0 : projection
        Rtarget = 10. : projection
        T = 10000. : projection
    """,
    equations = """
        # Homeostatic values
        R = post.r : postsynaptic
        K = R/(T*(1.+fabs(1. - R/Rtarget) * gamma)) : postsynaptic
        # Nearest-neighbour
        stdp = if t_post >= t_pre: ltp else: - ltd
        w += (alpha * w * (1- R/Rtarget) + beta * stdp ) * K : min=0.0, max=10.0
        # Traces
        tau_plus  * dltp/dt = -ltp : exponential
        tau_minus * dltd/dt = -ltd : exponential
    """,
    pre_spike="""
        g_target += w
        ltp = A_plus
    """,
    post_spike="""
        ltd = A_minus
    """
)
# Input population
OnPoiss = ann.PoissonPopulation(size, rates=1.0)
OffPoiss = ann.PoissonPopulation(size, rates=1.0)

# RS neuron for the input buffers
OnBuffer = ann.Population(size, RSNeuron)
OffBuffer = ann.Population(size, RSNeuron)

# Connect the buffers
OnPoissBuffer = ann.Projection(OnPoiss, OnBuffer, ['ampa', 'nmda'])
OnPoissBuffer.connect_one_to_one(ann.Uniform(0.2, 0.6))
OffPoissBuffer = ann.Projection(OffPoiss, OffBuffer, ['ampa', 'nmda'])
OffPoissBuffer.connect_one_to_one(ann.Uniform(0.2, 0.6))

# Excitatory and inhibitory neurons
Exc = ann.Population(nb_neuron, RSNeuron)
Inh = ann.Population(nb_neuron, RSNeuron)
Exc.compute_firing_rate(T)
Inh.compute_firing_rate(T)

# Input connections
OnBufferExc = ann.Projection(OnBuffer, Exc, ['ampa', 'nmda'], homeo_stdp)
OnBufferExc.connect_all_to_all(ann.Uniform(0.004, 0.015))
OffBufferExc = ann.Projection(OffBuffer, Exc, ['ampa', 'nmda'], homeo_stdp)
OffBufferExc.connect_all_to_all(ann.Uniform(0.004, 0.015))

# Competition
ExcInh = ann.Projection(Exc, Inh, ['ampa', 'nmda'], homeo_stdp)
ExcInh.connect_all_to_all(ann.Uniform(0.116, 0.403))

ExcInh.Rtarget = 75.
ExcInh.tau_plus = 51.
ExcInh.tau_minus = 78.
ExcInh.A_plus = -0.000041
ExcInh.A_minus = -0.000015

InhExc = ann.Projection(Inh, Exc, ['gabaa', 'gabab'])
InhExc.connect_all_to_all(ann.Uniform(0.065, 0.259))

ann.compile()
Compiling ...  OK
# Inputs
def get_grating(theta):
    x = np.linspace(-1., 1., size[0])
    y = np.linspace(-1., 1., size[1])
    xx, yy = np.meshgrid(x, y)
    z = np.sin(2.*np.pi*(np.cos(theta)*xx + np.sin(theta)*yy)*freq)
    return np.maximum(z, 0.), -np.minimum(z, 0.0)

# Initial weights
w_on_start = OnBufferExc.w
w_off_start = OffBufferExc.w

# Monitors
m = ann.Monitor(Exc, 'r')
n = ann.Monitor(Inh, 'r')
o = ann.Monitor(OnBufferExc[0], 'w', period=1000.)
p = ann.Monitor(ExcInh[0], 'w', period=1000.)

# Learning procedure
from time import time
import random
tstart = time()
stim_order = list(range(nb_stim))
try:
    for epoch in range(nb_epochs):
        random.shuffle(stim_order)
        for stim in stim_order:
            # Generate a grating randomly
            rates_on, rates_off = get_grating(np.pi*stim/float(nb_stim))
            # Set it as input to the poisson neurons
            OnPoiss.rates  = max_freq * rates_on
            OffPoiss.rates = max_freq * rates_off
            # Simulate for 2s
            ann.simulate(2000.)
            # Relax the Poisson inputs
            OnPoiss.rates  = 1.
            OffPoiss.rates = 1.
            # Simulate for 500ms
            ann.simulate(500.)
        print('Epoch', epoch+1, 'done.')
except KeyboardInterrupt:
    print('Simulation stopped')

print('Done in ', time()-tstart)

# Recordings
datae = m.get('r')
datai = n.get('r')
dataw = o.get('w')
datal = p.get('w')
Epoch 1 done.
Epoch 2 done.
Epoch 3 done.
Epoch 4 done.
Epoch 5 done.
Epoch 6 done.
Epoch 7 done.
Epoch 8 done.
Epoch 9 done.
Epoch 10 done.
Epoch 11 done.
Epoch 12 done.
Epoch 13 done.
Epoch 14 done.
Epoch 15 done.
Epoch 16 done.
Epoch 17 done.
Epoch 18 done.
Epoch 19 done.
Epoch 20 done.
Done in  122.07915997505188
# Final weights
w_on_end = OnBufferExc.w
w_off_end = OffBufferExc.w

# Plot
import matplotlib.pyplot as plt

plt.figure(figsize=(12, 12))

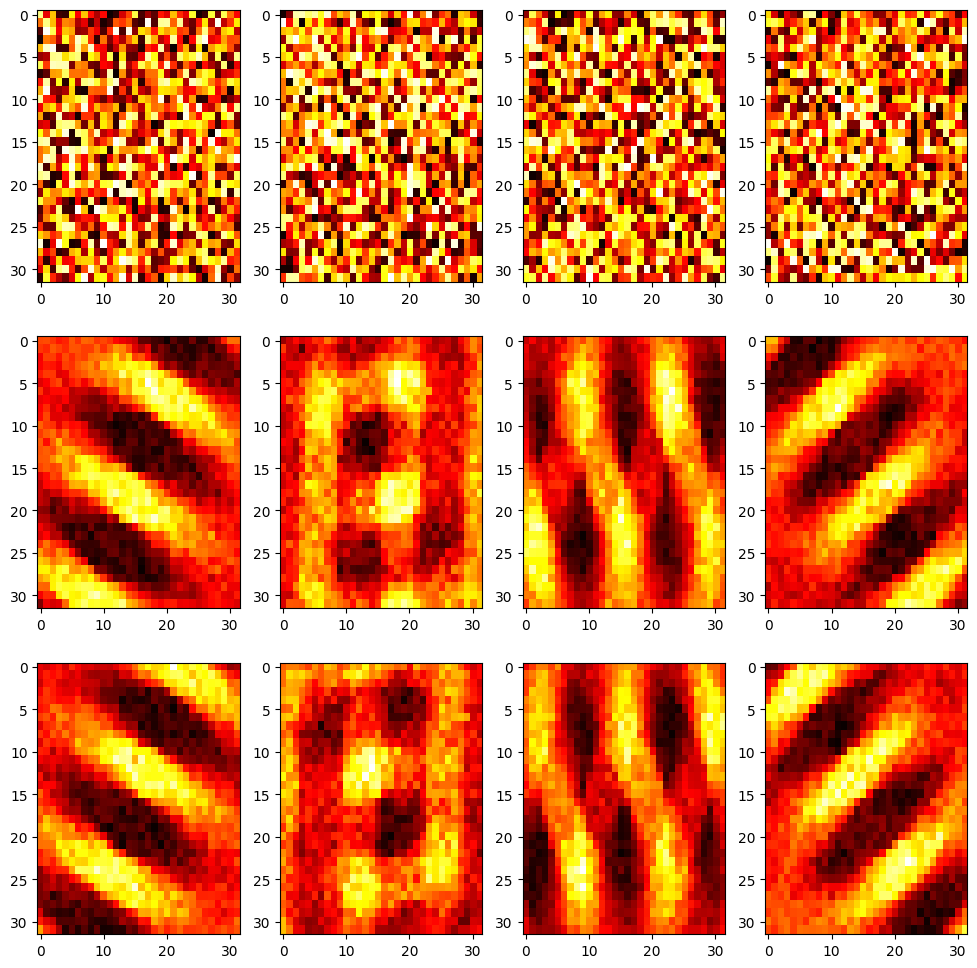

plt.title('Feedforward weights before and after learning')
for i in range(nb_neuron):
    plt.subplot(3, nb_neuron, i+1)
    plt.imshow((np.array(w_on_start[i])).reshape((32,32)), aspect='auto', cmap='hot')
    plt.subplot(3, nb_neuron, nb_neuron + i +1)
    plt.imshow((np.array(w_on_end[i])).reshape((32,32)), aspect='auto', cmap='hot')
    plt.subplot(3, nb_neuron, 2*nb_neuron + i +1)
    plt.imshow((np.array(w_off_end[i])).reshape((32,32)), aspect='auto', cmap='hot')

plt.figure(figsize=(12, 8))
plt.plot(datae[:, 0], label='Exc')
plt.plot(datai[:, 0], label='Inh')

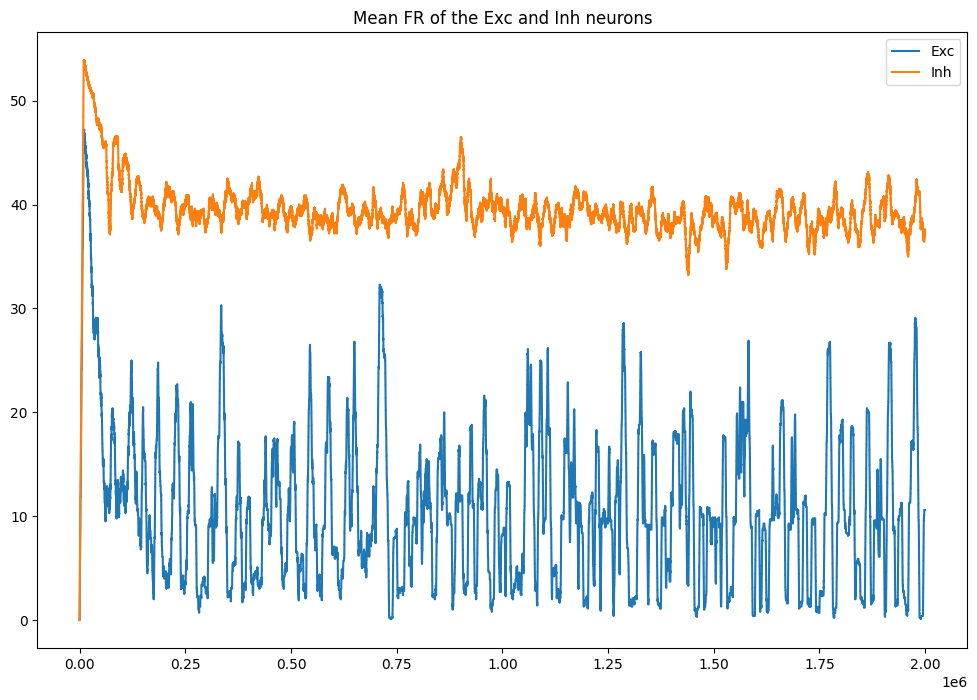

plt.title('Mean FR of the Exc and Inh neurons')
plt.legend()

plt.figure(figsize=(12, 8))
plt.subplot(121)
plt.imshow(np.array(dataw, dtype='float').T, aspect='auto', cmap='hot')

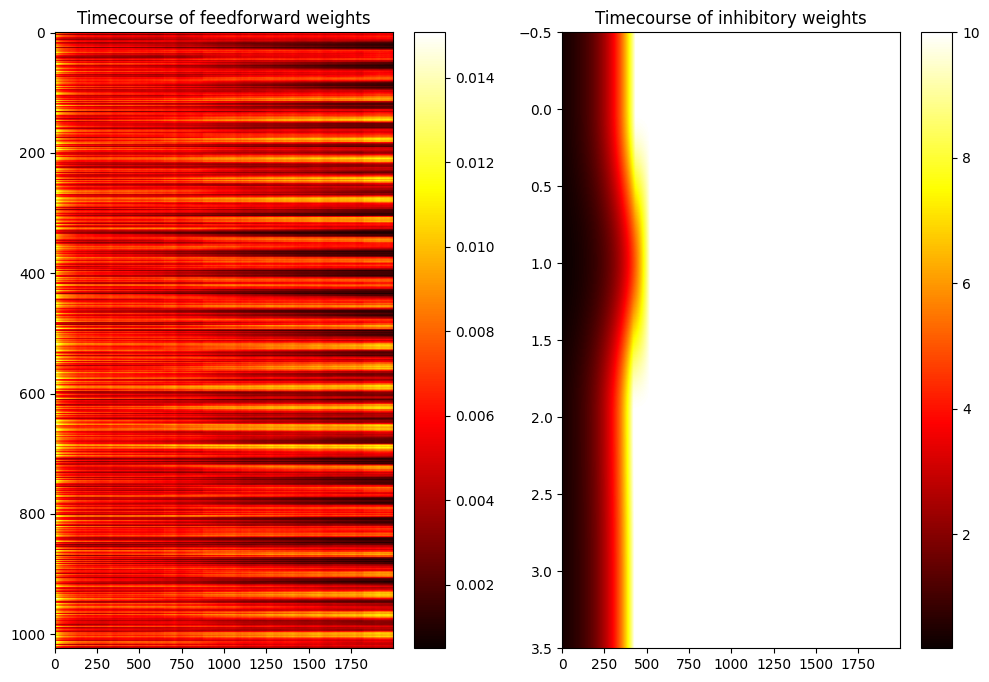

plt.title('Timecourse of feedforward weights')
plt.colorbar()
plt.subplot(122)
plt.imshow(np.array(datal, dtype='float').T, aspect='auto', cmap='hot')
plt.title('Timecourse of inhibitory weights')
plt.colorbar()
plt.show()
/var/folders/6w/6msx49ws7k13cc0bbys0tt4m0000gn/T/ipykernel_8956/2229657718.py:11: MatplotlibDeprecationWarning: Auto-removal of overlapping axes is deprecated since 3.6 and will be removed two minor releases later; explicitly call ax.remove() as needed.
  plt.subplot(3, nb_neuron, i+1)
