PyNN and Brian examples

Download JupyterNotebook Download JupyterNotebook

#!pip install ANNarchy
import numpy as np
import matplotlib.pyplot as plt
import ANNarchy as ann

ann.setup(dt=0.1)
ANNarchy 4.8 (4.8.2) on darwin (posix).

IF_curr_alpha

Simple network with a Poisson spike source projecting to a pair of IF_curr_alpha neurons.

This is a reimplementation of the PyNN example:

http://www.neuralensemble.org/trac/PyNN/wiki/Examples/simpleNetwork

# Parameters
tstop = 1000.0
rate = 100.0

# Create the Poisson spikes
number = int(2*tstop*rate/1000.0)
np.random.seed(26278342)
spike_times = np.add.accumulate(np.random.exponential(1000.0/rate, size=number))

# Input population
inp  = ann.SpikeSourceArray(list(spike_times))

# Output population
pop = ann.Population(2, ann.IF_curr_alpha)
pop.tau_refrac = 2.0,
pop.v_thresh = -50.0,
pop.tau_syn_E = 2.0,
pop.tau_syn_I = 2.0

# Excitatory projection
proj = ann.Projection(inp, pop, 'exc')
proj.connect_all_to_all(weights=1.0)

# Monitor
m = ann.Monitor(pop, ['spike', 'v'])

# Compile the network
net = ann.Network()
net.add([inp, pop, proj, m])
net.compile()

# Simulate
net.simulate(tstop)
data = net.get(m).get()

# Plot the results
plt.figure(figsize=(12, 8))
plt.plot(ann.dt()*np.arange(tstop/ann.dt()), data['v'][:, 0])
plt.xlabel('Time (ms)')
plt.ylabel('Vm (mV)')
plt.ylim([-66.0, -48.0])
plt.title('Simple Network')
plt.show()
Compiling network 1...  OK

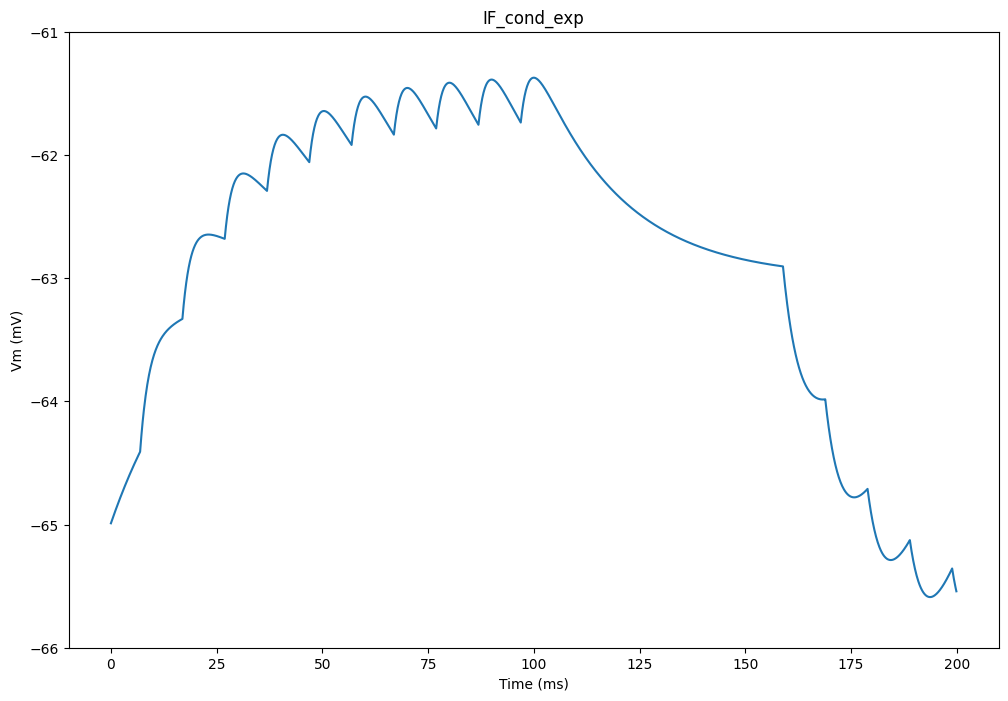

IF_cond_exp

A single IF neuron with exponential, conductance-based synapses, fed by two spike sources.

This is a reimplementation of the PyNN example:

http://www.neuralensemble.org/trac/PyNN/wiki/Examples/IF_cond_exp

# Parameters
tstop = 200.0

# Input populations with predetermined spike times
spike_sourceE = ann.SpikeSourceArray(spike_times= [float(i) for i in range(5,105,10)] )
spike_sourceI = ann.SpikeSourceArray(spike_times= [float(i) for i in range(155,255,10)])

# Population with one IF_cond_exp neuron
ifcell = ann.Population(1, ann.IF_cond_exp)
ifcell.set(
    {   'i_offset' : 0.1,    'tau_refrac' : 3.0,
        'v_thresh' : -51.0,  'tau_syn_E'  : 2.0,
        'tau_syn_I': 5.0,    'v_reset'    : -70.0,
        'e_rev_E'  : 0.,     'e_rev_I'    : -80.0 } )


# Projections
connE = ann.Projection(spike_sourceE, ifcell, 'exc')
connE.connect_all_to_all(weights=0.006, delays=2.0)

connI = ann.Projection(spike_sourceI, ifcell, 'inh')
connI.connect_all_to_all(weights=0.02,  delays=4.0)

# Monitor
m = ann.Monitor(ifcell, ['spike', 'v'])

# Compile the network
net = ann.Network()
net.add([spike_sourceE, spike_sourceI, ifcell, connE, connI, m])
net.compile()

# Simulate
net.simulate(tstop)
data = net.get(m).get()

# Show the result
plt.figure(figsize=(12, 8))
plt.plot(ann.dt()*np.arange(tstop/ann.dt()), data['v'][:, 0])
plt.xlabel('Time (ms)')
plt.ylabel('Vm (mV)')
plt.ylim([-66.0, -61.0])
plt.title('IF_cond_exp')
plt.show()
Compiling network 1...  OK

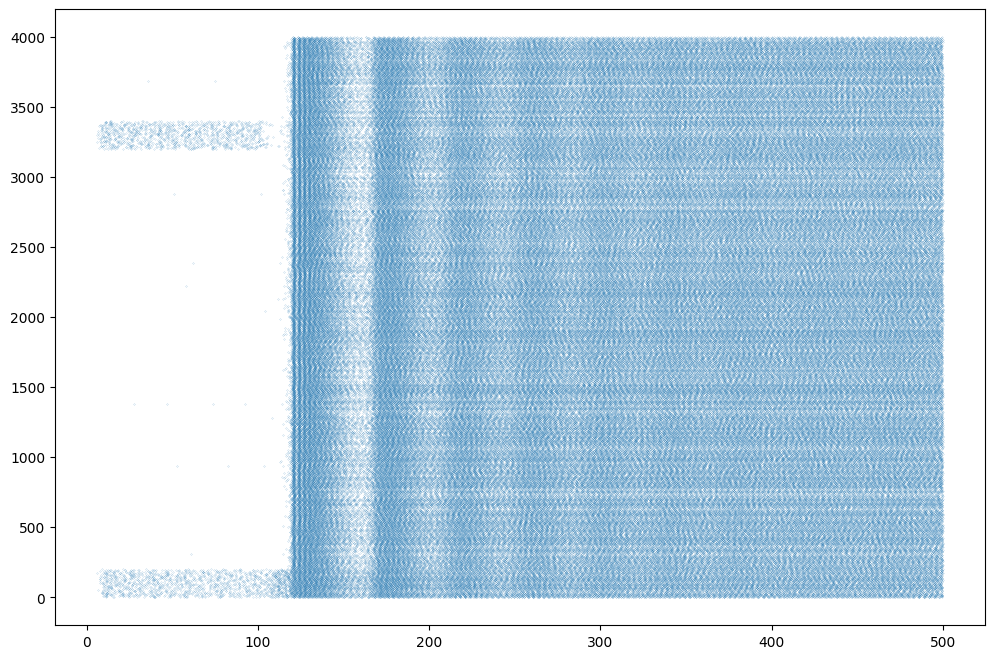

EIF_cond_exp

Network of EIF neurons with exponentially decreasing conductance-based synapses.

This is a reimplementation of the Brian example:

http://brian.readthedocs.org/en/1.4.1/examples-misc_expIF_network.html

EIF = ann.Neuron(
    parameters = """
        v_rest = -70.0 : population
        cm = 0.2 : population
        tau_m = 10.0 : population
        tau_syn_E = 5.0 : population
        tau_syn_I = 10.0 : population
        e_rev_E = 0.0 : population
        e_rev_I = -80.0 : population
        delta_T = 3.0 : population
        v_thresh = -55.0 : population
        v_reset = -70.0 : population
        v_spike = -20.0 : population
    """,
    equations="""
        dv/dt = (v_rest - v +  delta_T * exp( (v-v_thresh)/delta_T) )/tau_m + ( g_exc * (e_rev_E - v) + g_inh * (e_rev_I - v) )/cm

        tau_syn_E * dg_exc/dt = - g_exc
        tau_syn_I * dg_inh/dt = - g_inh
    """,
    spike = """
        v > v_spike
    """,
    reset = """
        v = v_reset
    """,
    refractory = 2.0

)

# Poisson inputs
i_exc = ann.PoissonPopulation(geometry=200, rates="if t < 200.0 : 2000.0 else : 0.0")
i_inh = ann.PoissonPopulation(geometry=200, rates="if t < 100.0 : 2000.0 else : 0.0")

# Main population
P = ann.Population(geometry=4000, neuron=EIF)

# Subpopulations
Pe = P[:3200]
Pi = P[3200:]

# Projections
we = 1.5 / 1000.0 # excitatory synaptic weight
wi = 2.5 * we # inhibitory synaptic weight

Ce = ann.Projection(Pe, P, 'exc')
Ce.connect_fixed_probability(weights=we, probability=0.05)

Ci = ann.Projection(Pi, P, 'inh')
Ci.connect_fixed_probability(weights=wi, probability=0.05)

Ie = ann.Projection(i_exc, P[:200], 'exc') # inputs to excitatory cells
Ie.connect_one_to_one(weights=we)

Ii = ann.Projection(i_inh, P[3200:3400], 'exc')# inputs to inhibitory cells
Ii.connect_one_to_one(weights=we)

# Initialization of variables
P.v = -70.0 + 10.0 * np.random.rand(P.size)
P.g_exc = (np.random.randn(P.size) * 2.0 + 5.0) * we
P.g_inh = (np.random.randn(P.size) * 2.0 + 5.0) * wi

# Monitor
m = ann.Monitor(P, 'spike')

# Compile the Network
net = ann.Network()
net.add([P, i_exc, i_inh, Ce, Ci, Ie, Ii, m])
net.compile()

# Simulate
net.simulate(500.0, measure_time=True)

# Retrieve recordings
data = net.get(m).get()
t, n = net.get(m).raster_plot(data['spike'])

plt.figure(figsize=(12, 8))
plt.plot(t, n, '.', markersize=0.2)
plt.show()
Compiling network 3...  OK
Simulating 0.5 seconds of the network 3 took 1.0771634578704834 seconds.

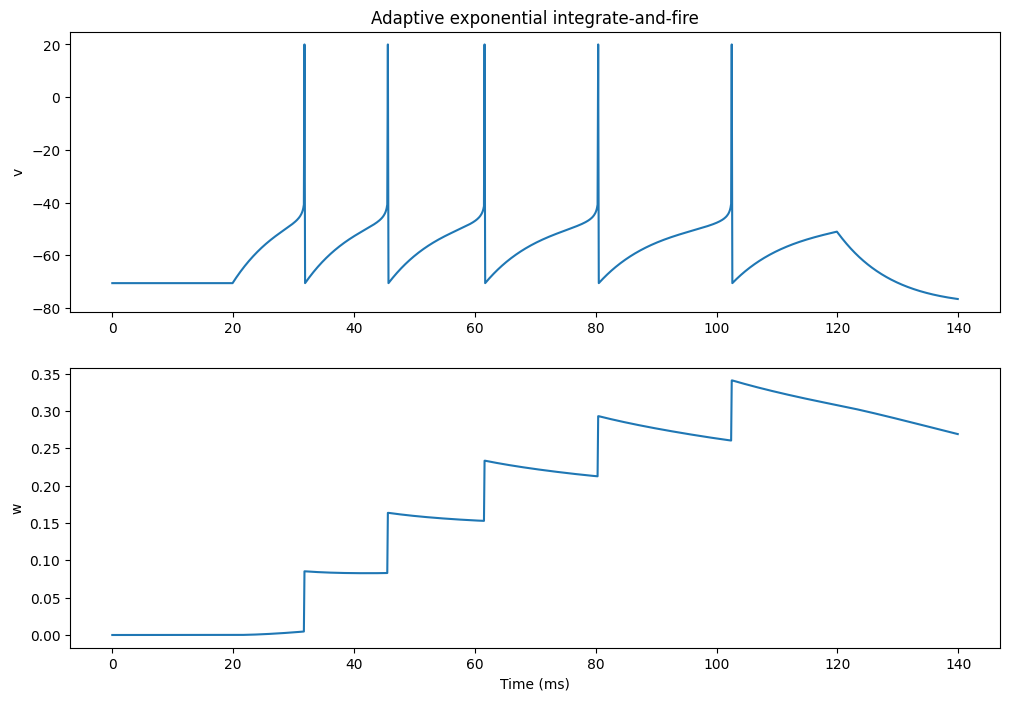

AEIF_cond_exp

Adaptive exponential integrate-and-fire model.

http://www.scholarpedia.org/article/Adaptive_exponential_integrate-and-fire_model

Model introduced in:

Brette R. and Gerstner W. (2005), Adaptive Exponential Integrate-and-Fire Model as an Effective Description of Neuronal Activity, J. Neurophysiol. 94: 3637 - 3642.

This is a reimplementation of the Brian example:

https://brian.readthedocs.io/en/stable/examples-frompapers_Brette_Gerstner_2005.html

# Create a population with one AdEx neuron
pop = ann.Population(geometry=1, neuron=ann.EIF_cond_exp_isfa_ista)

# Regular spiking (paper)
pop.tau_w, pop.a, pop.b, pop.v_reset = 144.0,  4.0, 0.0805, -70.6

# Bursting
#pop.tau_w, pop.a, pop.b, pop.v_reset = 20.0, 4.0, 0.5, pop.v_thresh + 5.0

# Fast spiking
#pop.tau_w, pop.a, pop.b, pop.v_reset = 144.0, 2000.0*pop.cm/144.0, 0.0, -70.6

# Monitor
m = ann.Monitor(pop, ['spike', 'v', 'w'])

# Compile the network
net = ann.Network()
net.add([pop, m])
net.compile()


# Add current of 1 nA and simulate
net.simulate(20.0)
net.get(pop).i_offset = 1.0
net.simulate(100.0)
net.get(pop).i_offset = 0.0
net.simulate(20.0)

# Retrieve the results
data = net.get(m).get()
spikes = data['spike'][0]
v = data['v'][:, 0]
w = data['w'][:, 0]
if len(spikes)>0:
    v[spikes] = 20.0

# Plot the activity
plt.figure(figsize=(12, 8))
plt.subplot(2,1,1)
plt.plot(ann.dt()*np.arange(140.0/ann.dt()), v)
plt.ylabel('v')
plt.title('Adaptive exponential integrate-and-fire')
plt.subplot(2,1,2)
plt.plot(ann.dt()*np.arange(140.0/ann.dt()), w)
plt.xlabel('Time (ms)')
plt.ylabel('w')
plt.show()
Compiling network 4...  OK

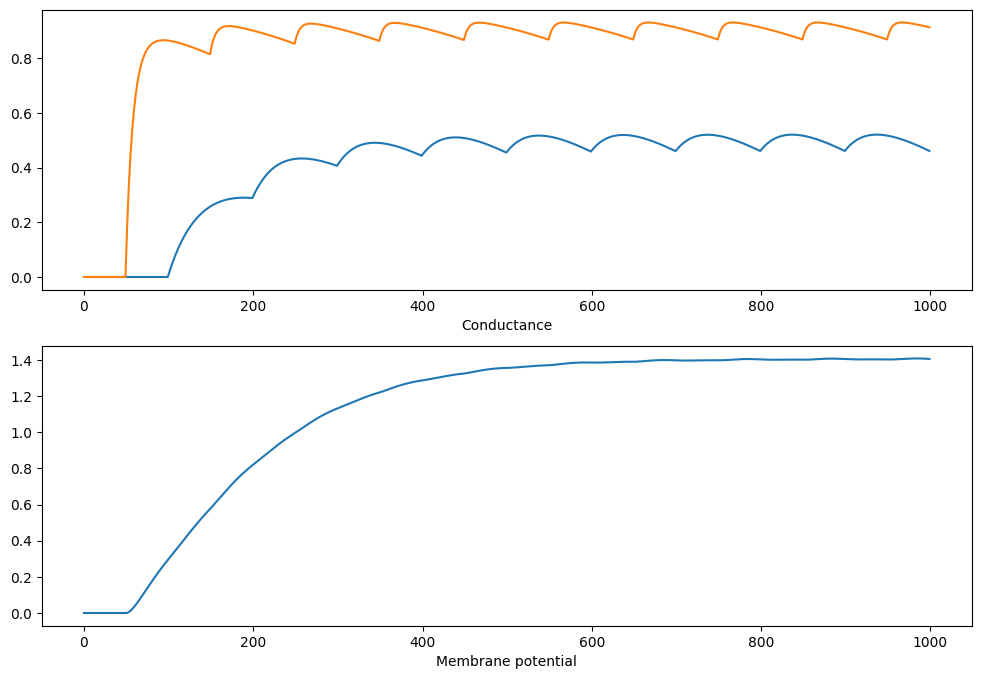

Non-linear synapses

A single IF neuron with two non-linear NMDA synapses.

This is a reimplementation of the Brian example:

http://brian.readthedocs.org/en/latest/examples-synapses_nonlinear_synapses.html

# Neurons
Linear = ann.Neuron(equations="dv/dt = 0.1", spike="v>1.0", reset="v=0.0")
Integrator = ann.Neuron(equations="dv/dt = 0.1*(g_exc -v)", spike="v>2.0", reset="v=0.0")

# Non-linear synapse
NMDA = ann.Synapse(
    parameters = """
        tau = 10.0 : projection
    """,
    equations = """
        tau * dx/dt = -x
        tau * dg/dt = -g +  x * (1 -g)
    """,
    pre_spike = "x += w",
    psp = "g"
)

# Populations
input = ann.Population(geometry=2, neuron=Linear)
input.v = [0.0, 0.5]
pop = ann.Population(geometry=1, neuron=Integrator)

# Projection
proj = ann.Projection(
    pre=input, post=pop, target='exc',
    synapse=NMDA)
proj.connect_from_matrix(weights=[[1.0, 10.0]])

# Monitors
m = ann.Monitor(pop, 'v')
w = ann.Monitor(proj, 'g')

# Compile the network
net = ann.Network()
net.add([input, pop, proj, m, w])
net.compile()

# Simulate for 100 ms
net.simulate(100.0)

# Retrieve recordings
v = net.get(m).get('v')[:, 0]
s = net.get(w).get('g')[:, 0, :]

# Plot the recordings
plt.figure(figsize=(12, 8))

plt.subplot(2,1,1)
plt.plot(s[:, 0])
plt.plot(s[:, 1])
plt.xlabel("Time (ms)")
plt.xlabel("Conductance")

plt.subplot(2,1,2)
plt.plot(v)
plt.xlabel("Time (ms)")
plt.xlabel("Membrane potential")
plt.show()
WARNING: Monitor(): it is a bad idea to record synaptic variables of a projection at each time step!
WARNING: Monitor(): it is a bad idea to record synaptic variables of a projection at each time step!
Compiling network 5...  OK

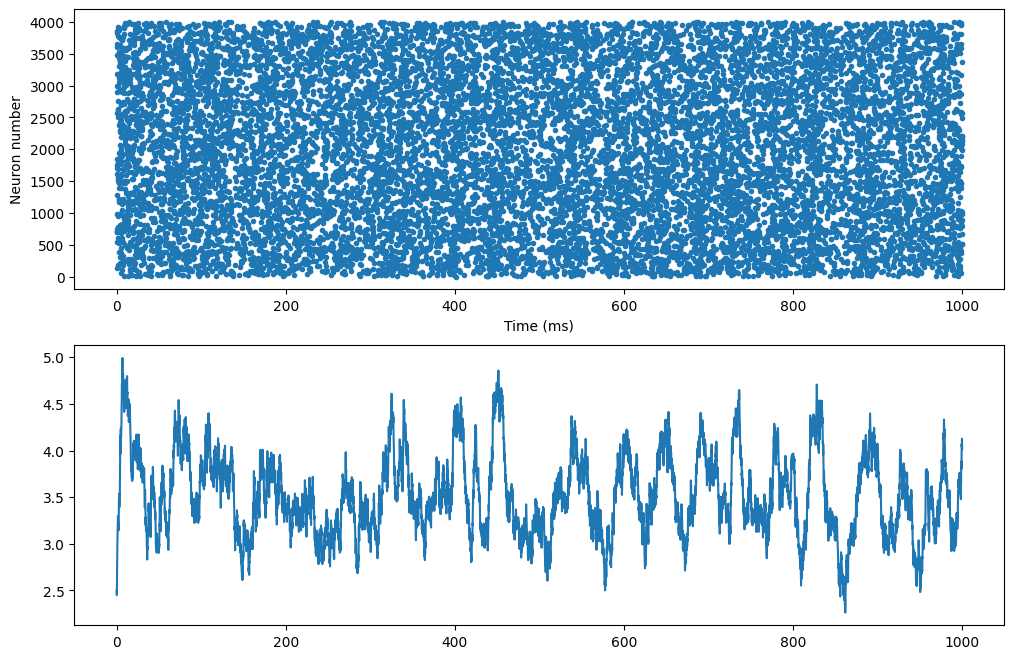

STP

Network (CUBA) with short-term synaptic plasticity for excitatory synapses (depressing at long timescales, facilitating at short timescales).

Adapted from :

https://brian.readthedocs.io/en/stable/examples-synapses_short_term_plasticity2.html

duration = 1000.0

LIF = ann.Neuron(
    parameters = """
        tau_m = 20.0 : population
        tau_e = 5.0 : population
        tau_i = 10.0 : population
        E_rest = -49.0 : population
        E_thresh = -50.0 : population
        E_reset = -60.0 : population
    """,
    equations = """
        tau_m * dv/dt = E_rest -v + g_exc - g_inh
        tau_e * dg_exc/dt = -g_exc
        tau_i * dg_inh/dt = -g_inh
    """,
    spike = "v > E_thresh",
    reset = "v = E_reset"
)

STP = ann.Synapse(
    parameters = """
        tau_rec = 200.0 : projection
        tau_facil = 20.0 : projection
        U = 0.2 : projection
    """,
    equations = """
        dx/dt = (1 - x)/tau_rec : init = 1.0, event-driven
        du/dt = (U - u)/tau_facil : init = 0.2, event-driven
    """,
    pre_spike="""
        g_target += w * u * x
        x *= (1 - u)
        u += U * (1 - u)
    """
)

# Population
P = ann.Population(geometry=4000, neuron=LIF)
P.v = ann.Uniform(-60.0, -50.0)
Pe = P[:3200]
Pi = P[3200:]

# Projections
con_e = ann.Projection(pre=Pe, post=P, target='exc', synapse = STP)
con_e.connect_fixed_probability(weights=1.62, probability=0.02)

con_i = ann.Projection(pre=Pi, post=P, target='inh')
con_i.connect_fixed_probability(weights=9.0, probability=0.02)

# Monitor
m = ann.Monitor(P, 'spike')

# Compile the network
net = ann.Network()
net.add([P, con_e, con_i, m])
net.compile()

# Simulate without plasticity
net.simulate(duration, measure_time=True)

data = net.get(m).get()
t, n = net.get(m).raster_plot(data['spike'])
rates = net.get(m).population_rate(data['spike'], 5.0)
print('Total number of spikes: ' + str(len(t)))

plt.figure(figsize=(12, 8))
plt.subplot(211)
plt.plot(t, n, '.')
plt.xlabel('Time (ms)')
plt.ylabel('Neuron number')
plt.subplot(212)
plt.plot(np.arange(rates.size)*ann.dt(), rates)
plt.show()
Compiling network 6...  OK
Simulating 1.0 seconds of the network 6 took 0.31792426109313965 seconds.
Total number of spikes: 14115
